Processes can be described by their starting and stopping points and by the kinds of changes that take place in between. Figure 1 shows the category Process subdivided by the distinction of continuous change versus discrete change. In a continuous process, which is the normal kind of physical process, incremental changes take place continuously. In a discrete process, which is typical of computer programs or idealized approximations to physical processes, changes occur in discrete steps called events, which are interleaved with periods of inactivity called states. A continuous process with an explicit starting point is called an initiation; one with an ending point is a cessation; and one whose endpoints are not being considered is a continuation.

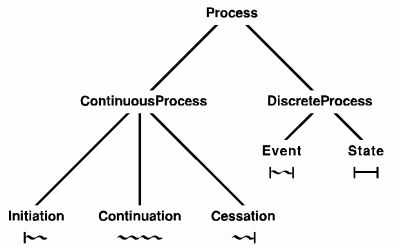

Figure 1: Types of Processes
Beneath each of the five categories at the leaves of Figure 1 is an icon that illustrates the kind of change: a vertical bar indicates an endpoint, a wavy horizontal line indicates change, and a straight horizontal line indicates no change. A discrete process is a sequence of states and events that may be symbolized by a chain of straight and wavy lines separated by vertical bars. A continuous process may be symbolized by a continuous wavy line with occasional vertical bars. Those bars do not indicate a break in the physical process, but a discontinuity in the way the process is classified or described. The weather, for example, varies by continuous gradations, but different time periods may be classified as hot or cold, cloudy or sunny.
The categories in Figure 1 could be further differentiated according to the kinds of participants that are involved in the process and how they interact with one another. An action is an event caused by an agent, and an activity is an extended process (continuous or discrete) caused by one or more agents over some time interval. The agent's intentions may also be important for determining the classification: a cessation that satisfies an agent's goals is considered a success, and one that does not satisfy the goals is a failure. For more detail, see the web pages on causality, agents, roles and relations, and thematic roles. The fundamental principles and techniques for doing the classification are discussed in the book Knowledge Representation.
In natural languages, the features of tense and aspect relate the event described by a verb to the type of process and to the reference times of one or more observers. The simple tenses -- past, present, and future -- relate the time of an event to the time of the speech. The compound tenses, such as past perfect or future perfect, involve an additional reference time in some real or hypothetical past or future. Aspect describes the initiation, continuation, or completion of some action with respect to the reference times. Whether an action is continuing or completed may depend on some agent's intentions. The definitions of many verbs depend on the intentions of their agents, and the same physical process described by different verbs can be classified in very different ways. Different classifications, in turn, have different implications. Depending on the verb that is used to describe an action, the agent may be praised for a success or blamed for a failure.
In his book Features and Fluents, Erik Sandewall presented a detailed taxonomy of process types, their representation in logic, and the techniques for reasoning about them. His taxonomy is determined by a list of distinctions based on the complexity of the interactions and the kinds of representations needed to describe them:
The icons shown in Figure 1 can be linked end to end in a timing diagram to represent a history of the process. At the bottom of Figure 2 is a timing diagram for a clock, which is a discrete, linear, independent, immediate, sequential, predictable, normal, flat, timeless, forgetful process. The history of the clock process shows an open-ended sequence of states separated by negligibly short events called ticks. Each tick causes an integer, called a counter, to be incremented by one.

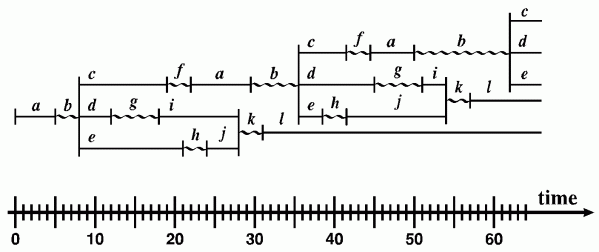

Figure 2: Concurrent processes timed with a clock
Above the timing diagram for the clock is a timing diagram for a concurrent process, which has varying numbers of subprocesses, called threads, that run in parallel. The events and states of the process can be timed by comparing their occurrences with the numbered ticks of the clock process. The concurrent process shown in Figure 2 represents a history of firings of a Petri net, which is discussed in Chapter 4 of the book Knowledge Representation. For further discussion of Petri nets and their use in representing processes, see the web page on causality.
Sandewall's list does not exhaust all the possible distinctions for classifying processes. A system designer, for example, might distinguish a process local to a single system from a process distributed across a network. Sandewall did not consider that distinction because the location of a process is independent of the methods for reasoning about it. For different purposes, new categories can be generated by adding more distinctions to the list or by deleting some that are not relevant.
For further discussion about continuous processes, discrete processes, and causal influences, see the paper on Processes and Causality.
Send comments to John F. Sowa.
